H03VV-F、H03VVH2-F

聚氯乙烯護套電線

Light-duty PVC Insulated Flexible Cords

標準 Standard: DIN VDE0281-5(HD 21.5S3)

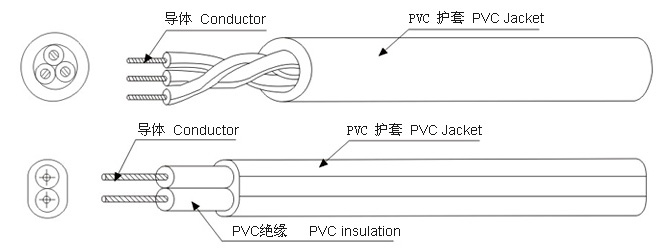

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V,Rated temperature:70℃
●	Stranded Tinned or bare copper conductor, 0.5-0.75mm²
●	PVC Insulation
●	PVC Jacket
●	Passes DIN VDE HD405.1 Vertical flame test
●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid,alkail oil,moisture and rungi,conforming RoHS

■ 應用

適用于一般電子、電器設備電源連線

APPLICATION

For general purpose internal wiring of electronic and eclectrical equipment

H03VV-F H03VVFH2-F 70℃ 300/300V
導體型號 Conductor Type	導體 Conductor			芯數 Cores	絕緣 Insulation		護套 Jacket			較大導體電阻 Max Resistance at 20℃	*小絕緣電阻 Min Insulation Resistance, MΩ.Km	耐電壓 Dielectric Strength AC 1 min		標準長度 Standard Length
	標準 截面 Nom. Area	線數/ 線徑	直徑 Dia		標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	較大外徑 MAX. Dia.			絕緣 insulation	成品 Finished Cable
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	75℃ HVFF	V		M
絞合導體 Stranded Conductor	0.5	28/0.15 20/0.18 16/0.20	0.92	2	0.5	1.92	0.6	3.2×5.1	3.7×5.9	39.0	0.012	1500	2000	200
				2				5.1	5.9
				3				5.4	6.3
	0.75	42/0.15 24/0.20 30/0.18	1.13	2	0.5	2.13		3.4×5.5	3.8×6.3	26.0	0.010
				2				5.5	6.3
				3				5.8	6.7
