RVVP RVVP1多芯屏蔽電纜

RVVP、RVVP1

多芯屏蔽電纜

Multi-Conductor Shielded Cable

標準 Standard: JB 8734.5-1998

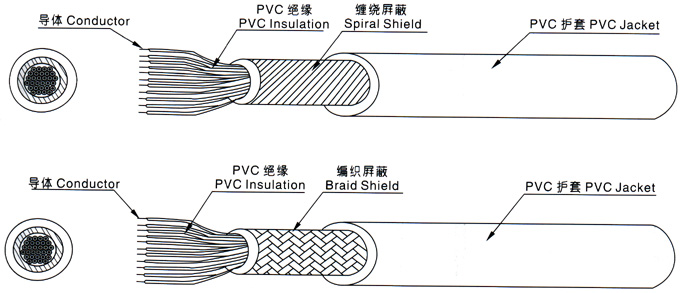

■ 構造 CONSTITUTION：

■ 產品說明
●

額定電壓：300/300V， 額定溫度：70℃

●

導體使用絞線0.08-1.5mm2裸銅絲

●

PVC絕緣

●

鍍錫或裸軟銅線纏繞或編織屏蔽

●

PVC護套

●

可通過GB 12666.2垂直耐燃試驗

● 使用標準厚度、易剝、易裁
● 具有抗酸堿、耐油、防潮、防霉、環保等特性
PRODUCT DESCRIPTION
●

Rated voltage: 00/300V，Rated temperature:70℃

●

Stranded, bare copper conductor,0.08-1.5mm2

●

PVC insulation

●

Tinned or bare copper wire sporal or braid shield

●

PVC jacket

●

Passes GB 12666.2 vertical flame test

● Uniform insulation thickness of wire to ensure easy stripping and cutting
● Resistant to acid,alkail,oil,moisture and fungi,conform RoHS
■ 應用

適用于電器、儀表和電子設備及自動化裝置用連線

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

RVVP、RVVP1 70℃ 300/300V

型號 Style

異體

Conductor

芯數Cores

絕緣

Insulation

屏蔽Shield 護套 Jacket

較大異體電阻 Max Resis- tance at 20℃

*小絕緣電阻 Max Insul- ation Resis- tance at 70℃

耐電壓

Dielec- tric Strength AC 5 min

標準長度Standard Length

標準截面

Nom. Area

線數/線徑 直徑 Dia

標稱厚度 Nom. Thick

標稱外徑 Nom.

Dia.

纏繞/編織 Spiral/ Braid

標稱厚度 Nom.

Thick.

標稱外徑 Nom.

Dia.

較大外徑 Max. Dia
mm2 No./mm mm No. mm mm mm mm mm mm Ω/Km MΩ.Km V (M)
RVVP1 0.08 7/0.12 0.37 1 0.4 1.17 0.10 0.4 2.20 2.5 247.0 0.018 1500 500
2 0.10 3.40 4.2
0.12 7/0.15 0.46 1 0.4 1.26 0.10 0.4 2.30 2.6 158.0 0.016 1500
2 0.10 0.6 4.00 4.9 300
3 0.10 4.10 5.1
4 0.15 4.60 5.8
5 0.15 5.00 6.2
0.2 12/0.15 060 1 0.4 1.40 0.10 0.4 2.40 2.8 92.3 0.016 1500 500
2 0.10 0.6 4.20 5.3 300
3 0.15 4.60 5.8
4 0.15 4.90 6.2
5 0.15 5.30 6.7
0.3 16/0.15 0.69 1 0.5 1.69 0.10 0.4 2.70 3.1 69.2 0.014 1500 500
2 0.15 0.6 4.90 6.2 300
3 0.15 5.20 6.5
4 0.15 5.60 7.0 200
5 0.15 6.10 7.6
RVVP 0.08 7/0.12 0.37 1 0.4 1.17 16/3/0.10 0.4 2.40 2.9 247.0 0.018 1500 500
2 16/4/0.10 3.60 4.2 300
16/4/0.10 2.4×3.6 2.9×4.2
0.12 7/0.15 0.46 1 0.4 1.26 16/3/0.10 0.6 2.50 3.0 158.0 0.016 1500 500
2 16/4/0.10 4.20 4.9 300
16/4/0.10 2.9×4.2 3.4×4.9
3 16/4/0.10 4.40 5.1
4 16/4/0.15 4.90 5.8
5 16/4/0.15 5.30 6.2
6-7 16/4/0.15 5.60 6.6 200
10 16/5/0.15 6.90 8.1
12 16/6/0.15 7.10 8.3
0.2 12/0.15 0.60 1 0.4 1.40 16/4/0.10 0.4 2.60 3.2 92.3 0.013 1500 500
2 16/4/0.10 0.6 4.40 5.3 300
16/4/0.10 3.0×4.4 3.6×5.3
3 16/4/0.15 4.90 5.8
4 16/4/0.15 5.20 6.2
5 16/4/0.15 5.60 6.7 200
6-7 16/4/0.15 6.00 7.2
10 16/4/0.15 0.8 7.80 9.3
12 16/4/0.15 8.10 9.6 150
