聚乙烯絕緣同軸電纜
PE Insulated Coaxial Cable
|
標準 Standard: UL 758,1581
|
|
|

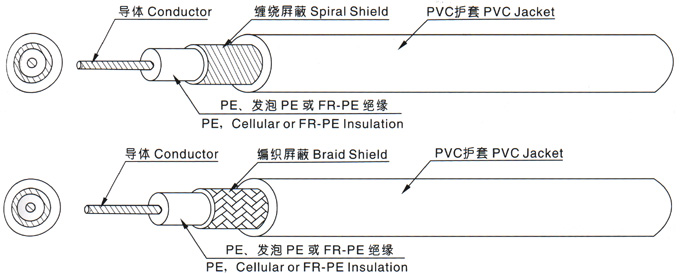

■ 構造 CONSTITUTION:
|
|
|
|
■ 產品說明
|
|
●
|
額定電壓:30V, 額定溫度:60℃或80℃
|
|
●
|
導體使用單根或絞線40AWG以上裸銅或鍍錫絲
|
|
●
|
PE、發泡PE或耐燃PE絕緣
|
|
●
|
鍍錫或裸軟銅線纏繞或編織屏蔽
|
|
●
|
PVC護套
|
|
●
|
可通過UL VW-1垂直耐燃試驗
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
●
|
Rated voltage: 30V,Rated temperature:60℃or80℃
|
|
●
|
Tinned or bare,stranded or solid copper conductor,40AWGmin.
|
|
●
|
PE,cellular PE or FR-PE insulation
|
|
●
|
Tinned or bare copper wire spiral or braid shield
|
|
●
|
PVC jacket
|
|
●
|
Passes UL VW-1 vertical flame test
|
|
|
|
|
|
|
|
■ 應用
|
|
適用于電視機、收音機、接收器、錄音機、錄像機等內部連線
|
|
|
|
APPLICATION
|
|
Internal wiring of TV,redio,receiver,VTR,tape recorder,etc
|
|
|
|
|
|
UL 1354 60℃ or 80℃ 30V
|
導體
Conductor
|
絕緣
Insulation
|
屏蔽
Shield
|
護套
Jacket
|
較大導體電阻
Max Resistance at 20℃
|
*小絕緣電阻
Min Insulation Resistance,
at20℃
|
耐電壓
Dielectric Strength AC1min
|
標準長度Standard Length
|
線規Spec
|
線數/
線徑
|
直徑
Dia
|
標稱
厚度
Nom. Thick.
|
標稱
外徑
Nom.
Dia.
|
纏 繞Spiral
|
編 織Braid
|
外徑Nom.
Dia.
|
標稱
厚度Nom.
Thick.
|
標稱
外徑
Nom.
Dia.
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
NO./No/mm
|
mm
|
mm
|
mm
|
Ω/km
|
MΩ.Km
|
V
|
Ft(M)
|
30
|
7/0.10
|
0.30
|
0.25
|
0.80
|
0.10
|
|
1.00
|
0.30
|
1.60
|
354.24
|
1000
|
500
|
2000(610)
|
7/0.10
|
0.30
|
0.90
|
|
16/4/0.10
|
1.30
|
0.30
|
1.90
|
28
|
7/0.127
|
0.38
|
0.30
|
0.98
|
0.10
|
|
1.18
|
0.30
|
1.78
|
223.75
|
7/0.127
|
0.35
|
1.08
|
|
16/4/0.10
|
1.48
|
0.30
|
2.08
|
26
|
7/0.16
|
0.48
|
0.38
|
1.24
|
0.10
|
|
1.44
|
0.35
|
2.14
|
139.73
|
7/0.16
|
0.48
|
1.44
|
|
16/4/0.12
|
1.92
|
0.45
|
2.82
|
22
|
7/0.203
|
0.61
|
0.45
|
1.51
|
0.10
|
|
1.71
|
0.35
|
2.41
|
93.3
|
1000(305)
|
7/0.203
|
0.55
|
1.71
|
|
16/4/0.12
|
2.19
|
0.45
|
3.09
|
|
|
